24GHz 1D Detection model SC1232AR3

“Easy-to-use” & “All-in-one” 24GHz radar sensor enabling motion and distance detection without any external MCU calculations.

SC1232AR3

  • Features
  • Example System Configuration
  • Example use case
  • Specifications
  • Evaluation kit
  • Document

Features

Easy to use

System BOM can be reduced by “All-in-one” package radar sensor

Built-in autonomous motion/distance detection function enables only I2C/SPI
connection for settings & result acquisition

Wide detection area

Preferable detection area: 8m(*1) in front direction

120deg / 95deg selectable FOV(*1, *2) with Digital beam shaper

Suited for battery operation

0.5mW average operating power consumption on human detection application(*3)

After sensor setup & run, MCU can sleep until something detected

*1:Detection area depends on environmental condition

*2:Half distance angle

*3:In case of 0.1% duty cycle operation in Motion Detection mode

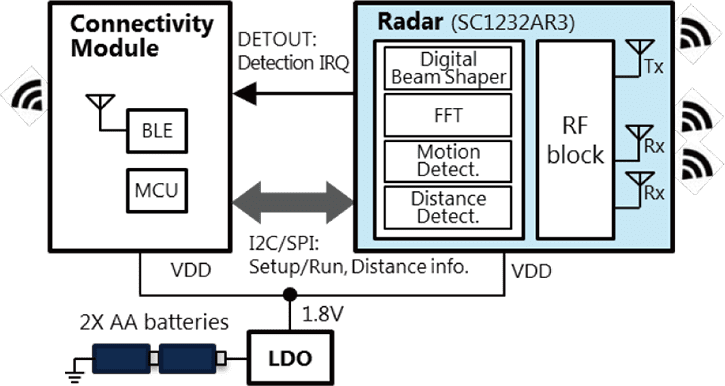

Example System Configuration

Example use case

Entry Motion/ Presence Detection

Internal processing engine calculates & outputs Motion Detection (Entry Motion / Presence Detection) result through DETOUT.

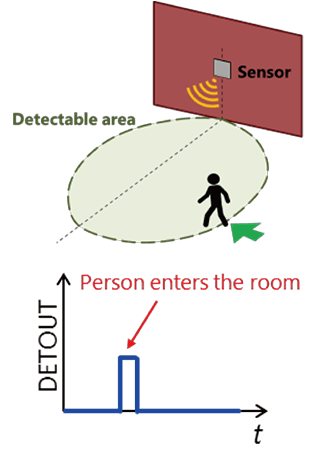

[Entry Motion Detection]

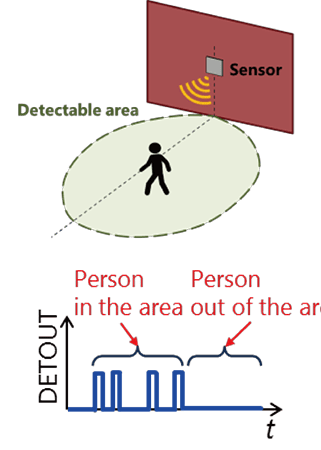

[Presence Detection]

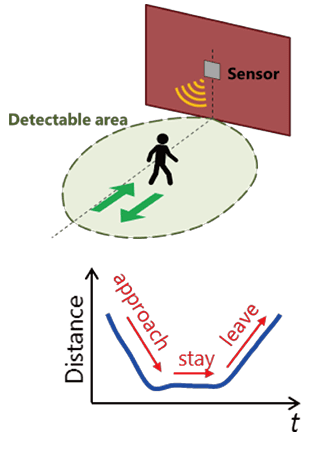

Distance Detection

Internal processing engine calculates & outputs Distance to the moving objects through I2C or SPI.

Specifications

Frequency range 24.06 - 24.24GHz

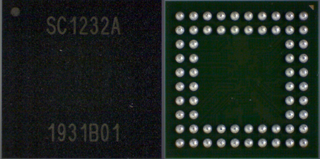

Size,Package Size: 9mm x 9mm x 1.18mm, BGA package, 0.8mm pitch, 64pin
Supply voltage 1.8V
Power consumption average 0.5mW(*3)
Operating package
top temperature		 -40 to 105°C
Output power Tx EIRP (typ) 4.0dBm
Detection area Preferable detection area: 8m(*1)in front direction
120/95° selectable FOV(*1, *2)
Sensor output Motion Detection result, Distance Detection result

*1:Detection area depends on environmental condition

*2:Half distance angle

*3:In case of 0.1% duty cycle operation in Motion Detection mode

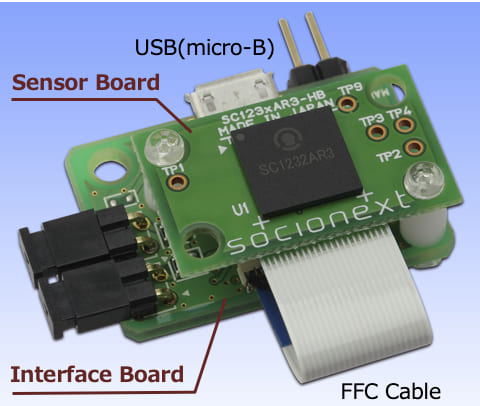

Evaluation kit

The Evaluation Kit "SC1232AR3-B-001" provides an evaluation environment of the 24GHz Radar Sensor "SC1232AR3".

Evaluation kit contents

SC1232AR3 evaluation kit hardware with USB cable (A to micro-B)

Sensor library / Evaluation software (GUI)

Related documents
Evaluation software (GUI) operation manual
API specification of control API
Application note (Sensor setting parameters / Sample C source for API)

More information

For detailed information on the evaluation kit "SC1232AR3-B-001", refer to the catalog below.

24GHz 1D Detection model SC1232 Evaluation kit

SC1232AR3-B-001

Document

Catalog
